Unequal Leg Angles (JIS + EN)

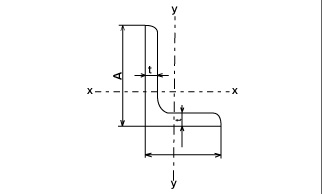

Product Diagram:
Product Image:
| Specification: BS EN 10025:2004 Dimension: JIS G3192:2008 / ISO657-1 Tolerance: JIS G3192:2008 | ||||||||||
| Designation | unit mass | Area | Ix | Iy | ix | iy | Zx | Zy | ||
| A | B | t | kg/m | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 |
| 100x | 75x | 6* | 8.05 | - | - | - | - | - | - | - |
| 7 | 9.32 | 11.87 | 118 | 56.9 | 3.15 | 2.19 | 17.0 | 10.0 | ||
| 8 | 10.60 | 13.50 | 133 | 64.1 | 3.14 | 2.18 | 19.3 | 11.4 | ||
| 10 | 13.00 | 16.50 | 159 | 76.1 | 3.11 | 2.15 | 23.3 | 13.7 | ||
| 125x | 75x | 6* | 9.22 | - | - | - | - | - | - | - |
| 7 | 10.70 | 13.62 | 219 | 60.4 | 4.01 | 2.11 | 26.1 | 10.3 | ||
| 8 | 12.10 | 15.50 | 247 | 67.6 | 4.00 | 2.09 | 29.6 | 11.6 | ||
| 9* | 13.50 | 17.40 | 276 | 75.5 | 3.99 | 2.09 | 33.2 | 13.1 | ||
| 10 | 14.90 | 19.00 | 299 | 80.8 | 3.96 | 2.06 | 36.1 | 14.1 | ||
| 150x | 90x | 7* | 12.09 | - | - | - | - | - | - | - |
| 9 | 16.40 | 20.94 | 485 | 133 | 4.81 | 2.52 | 48.2 | 19.0 | ||
| 10 | 18.10 | 23.20 | 533 | 146 | 4.80 | 2.51 | 53.3 | 21.0 | ||
| 12 | 21.50 | 27.36 | 619 | 167 | 4.76 | 2.47 | 62.3 | 24.3 | ||
* Manufacturer Product Size
| Specification: BS EN 10025:2004 Dimension: BS EN 10056-1:1998 Tolerance: BS EN 10056-2:1998 | ||||||||||
| Designation | unit mass | Area | Ix | Iy | ix | iy | Zx | Zy | ||
| A | B | t | kg/m | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 |
| 200x | 100x | 10 | 23.00 | 29.2 | 1,220 | 210 | 6.46 | 2.68 | 93.2 | 26.3 |
| 12 | 27.30 | 34.8 | 1,440 | 247 | 6.43 | 2.67 | 111 | 31.3 | ||
| 15 | 33.75 | 43.0 | 1,758 | 299 | 6.40 | 2.64 | 137 | 38.5 | ||
| 200x | 150x | 12 | 32.00 | 40.8 | 1,650 | 803 | 6.36 | 4.44 | 119 | 70.5 |
| 15 | 39.60 | 50.5 | 2,022 | 979 | 6.33 | 4.40 | 147 | 86.9 | ||
Other dimensions on request
