Equal Leg Angles (JIS + EN)

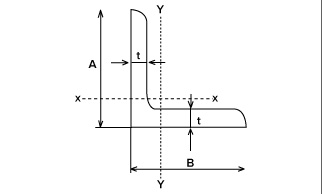

Product Diagram:

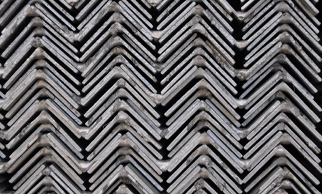

Product Image:
| Specification: BS EN 10025:2004 Dimension: JIS G3192:2008 Tolerance: JIS G3192:2008 | |||||||
| Designation | unit mass | Area | Ix = Iy | ix = iy | Zx = Zy | ||
| A | B | t | kg/m | cm2 | cm4 | cm | cm3 |
| 25x | 25x | 3 | 1.12 | 1.427 | 0.797 | 0.747 | 0.448 |
| 30x | 30x | 3 | 1.36 | 1.727 | 1.42 | 0.908 | 0.661 |
| 5* | 2.16 | 2.78 | 2.17 | 0.884 | 1.04 | ||
| 40x | 40x | 3 | 1.83 | 2.336 | 3.53 | 1.23 | 1.21 |
| 4 | 2.41 | 3.08 | 4.47 | 1.21 | 1.55 | ||
| 5 | 2.95 | 3.755 | 5.42 | 1.20 | 1.91 | ||
| 6* | 3.49 | 4.49 | 6.37 | 1.19 | 2.28 | ||
| 45x | 45x | 3* | 2.11 | - | - | - | - |
| 4 | 2.74 | 3.492 | 6.50 | 1.36 | 2.00 | ||
| 5 | 3.38 | 4.302 | 7.91 | 1.36 | 2.46 | ||
| 50x | 50x | 3* | 2.33 | 2.99 | 7.06 | 1.54 | 1.92 |
| 4 | 3.06 | 3.892 | 9.06 | 1.53 | 2.49 | ||
| 5 | 3.77 | 4.802 | 11.1 | 1.52 | 3.08 | ||
| 6 | 4.43 | 5.644 | 12.6 | 1.50 | 3.55 | ||
| 8* | 5.78 | 7.44 | 16.5 | 1.49 | 4.74 | ||
| 60x | 60x | 4 | 3.68 | 4.692 | 16 | 1.85 | 3.66 |
| 5 | 4.55 | 5.802 | 19.6 | 1.84 | 4.52 | ||
| 6 | 5.41 | 6.91 | 22.8 | 1.82 | 5.29 | ||
| 65x | 65x | 5 | 5 | 6.367 | 25.3 | 1.99 | 5.35 |
| 6 | 5.91 | 7.527 | 29.4 | 1.98 | 6.26 | ||
| 8 | 7.66 | 9.761 | 36.8 | 1.94 | 7.96 | ||
| 70x | 70x | 5* | 5.37 | - | - | - | - |
| 6 | 6.38 | 8.127 | 37.1 | 2.14 | 7.33 | ||
| 7 | 7.35 | 9.4 | 42.3 | 2.12 | 8.41 | ||
| 75x | 75x | 5* | 5.76 | - | - | - | - |
| 6 | 6.85 | 8.727 | 46.1 | 2.3 | 8.47 | ||
| 8 | 8.92 | 11.4 | 59.1 | 2.27 | 11.0 | ||
| 9 | 9.96 | 12.69 | 64.4 | 2.25 | 12.1 | ||
| 12 | 13 | 16.56 | 81.9 | 2.22 | 15.7 | ||
| 80x | 80x | 6 | 7.32 | 9.327 | 56.4 | 2.46 | 9.7 |
| 90x | 90x | 6 | 8.28 | 10.55 | 80.7 | 2.77 | 12.3 |
| 7 | 9.59 | 12.22 | 93.0 | 2.76 | 14.2 | ||
| 8 | 10.9 | 13.9 | 104 | 2.74 | 16.1 | ||
| 9 | 12.1 | 15.5 | 116 | 2.71 | 19.5 | ||
| 10 | 13.3 | 17 | 125 | 2.71 | 19.5 | ||
| 13 | 17 | 21.71 | 156 | 2.68 | 24.8 | ||
| 100x | 100x | 6* | 9.22 | 11.9 | 113 | 3.08 | 17.7 |
| 7 | 10.7 | 13.62 | 129 | 3.08 | 17.7 | ||
| 8 | 12.1 | 15.5 | 145 | 3.06 | 19.9 | ||
| 9* | 13.5 | - | - | - | - | ||
| 10 | 14.9 | 19 | 175 | 3.04 | 24.4 | ||
| 13 | 19.1 | 24.31 | 220 | 3.00 | 31.1 | ||
| 120x | 120x | 8 | 14.7 | 18.76 | 258 | 3.71 | 29.5 |
| 10 | 18.2 | 23.2 | 313 | 3.67 | 36.0 | ||
| 12 | 21.5 | 27.5 | 368 | 3.65 | 42.7 | ||
| 130x | 130x | 9 | 17.9 | 22.74 | 366 | 4.01 | 38.7 |
| 10* | 19.7 | 25.3 | 406 | 4.01 | 43.1 | ||
| 12 | 23.4 | 29.76 | 467 | 3.96 | 49.9 | ||
| 15 | 28.8 | 36.75 | 568 | 3.93 | 61.5 | ||
| 150x | 150x | 10 | 22.9 | 29.3 | 627 | 4.62 | 56.9 |
| 12 | 27.3 | 34.77 | 740 | 4.61 | 68.1 | ||
| 14* | 31.4 | - | - | - | - | ||
| 15 | 33.6 | 42.74 | 888 | 4.56 | 82.6 | ||
| 19 | 41.9 | 53.38 | 1,090 | 4.52 | 103 | ||
| 175x | 175x | 12 | 31.8 | 40.52 | 1,170 | 5.38 | 91.8 |
| 15 | 39.4 | 50.12 | 1,440 | 5.35 | 114 | ||
| 200x | 200x | 15 | 45.3 | 57.75 | 2,180 | 6.14 | 150 |
| 20 | 59.7 | 76.00 | 2,820 | 6.09 | 197 | ||
| 25 | 73.6 | 93.75 | 3,420 | 6.04 | 342 | ||
| 250x | 250x | 25 | 93.7 | 119.4 | 6,950 | 7.63 | 388 |
| 35 | 128.0 | 162.6 | 9,110 | 7.49 | 519 | ||
| Specification: BS EN 10025:2004 Dimension: BS EN 10056-1:1998 Tolerance: BS EN 10056-2:1998 | |||||||
| Designation | unit mass | Area | Ix = Iy | ix = iy | Zx = Zy | ||
| A | B | t | kg/m | cm2 | cm4 | cm | cm3 |
| 160x | 160x | 15 | 36.2 | 46.1 | 1,100 | 4.88 | 95.6 |
| 180x | 180x | 16 | 43.5 | 55.4 | 1,680 | 5.51 | 130 |
| 18 | 48.6 | 61.9 | 1,870 | 5.49 | 145 | ||
| 200x | 200x | 16 | 48.5 | 61.8 | 2,340 | 6.16 | 162 |
| 18 | 54.3 | 69.1 | 2,600 | 6.13 | 181 | ||
| 20 | 59.9 | 76.3 | 2,850 | 6.11 | 199 | ||
| 24 | 71.1 | 90.6 | 3,330 | 6.06 | 235 | ||
* Manufacturer Product Size
