Rectangular Hollow Sections (Hot Finished)
Specification: BS EN 10210-1:2006
Dimension: BS EN 10210-2:2006
Tolerance: BS EN 10210-2:2006
Specification: BS EN 10210-1:2006
Dimension: BS EN 10210-2:2006
Tolerance: BS EN 10210-2:2006

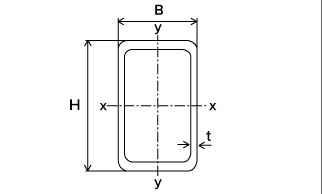

Product Diagram:

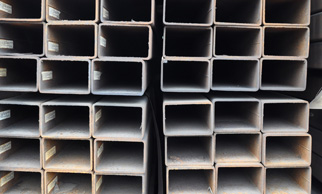

Product Image:
| Size (mm) | Mass (kg/m) | ||||||||||
| Thickness, t (mm) | |||||||||||
| H | B | 3.2 | 4 | 5 | 6.3 | 8 | 10 | 12.5 | 14.2 | 16 | 20 |
| 50 | 30 | 3.61 | 4.39 | 5.28 | |||||||
| 60 | 40 | 4.62 | 5.64 | 6.85 | 8.31 | ||||||
| 80 | 40 | 5.62 | 6.90 | 8.42 | 10.3 | 12.5 | |||||
| 90 | 50 | 6.63 | 8.15 | 9.99 | 12.3 | 15.0 | |||||
| 100 | 50 | 7.13 | 8.78 | 10.8 | 13.3 | 16.3 | |||||
| 100 | 60 | 7.63 | 9.41 | 11.6 | 14.2 | 17.5 | |||||
| 120 | 60 | 10.7 | 13.1 | 16.2 | 20.1 | 24.3 | |||||
| 120 | 80 | 11.9 | 14.7 | 18.2 | 22.6 | 27.4 | |||||
| 140 | 80 | 13.2 | 16.3 | 20.2 | 25.1 | 30.6 | |||||
| 150 | 100 | 15.1 | 18.6 | 23.1 | 28.9 | 35.3 | 42.8 | ||||
| 160 | 80 | 14.4 | 17.8 | 22.2 | 27.6 | 33.7 | 40.9 | ||||
| 180 | 100 | 16.9 | 21.0 | 26.1 | 32.6 | 40.0 | 48.7 | ||||
| 200 | 100 | 18.2 | 22.6 | 28.1 | 35.1 | 43.1 | 52.7 | 65.2 | |||
| 200 | 120 | 30.1 | 37.6 | 46.3 | 56.6 | ||||||
| 250 | 150 | 38.0 | 47.7 | 58.8 | 72.3 | 81.1 | 90.3 | ||||
| 260 | 180 | 41.9 | 52.7 | 65.1 | 80.1 | 90.1 | 100 | ||||
| 300 | 200 | 47.9 | 60.3 | 74.5 | 91.9 | 103 | 115 | ||||
| 350 | 250 | 57.8 | 72.8 | 90.2 | 112 | 126 | 141 | ||||
| 400 | 200 | 72.8 | 90.2 | 112 | 126 | 141 | |||||
| 450 | 250 | 85.4 | 106 | 131 | 148 | 166 | |||||
| 500 | 300 | 122 | 151 | 170 | 191 | 235 | |||||
Negligible residual stress
Weldable in corner region
Tighter Corner Profile
Weldable in corner region
Tighter Corner Profile
