Flat Bars
Specification: BS EN 10025:2004
Dimension: JIS G3194:1998
Tolerance: JIS G3194:1998
Specification: BS EN 10025:2004
Dimension: JIS G3194:1998
Tolerance: JIS G3194:1998

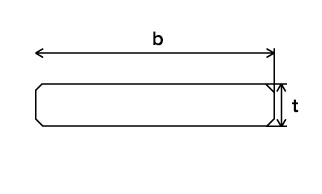

Product Diagram:

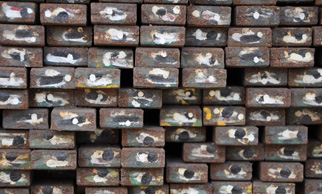

Product Image:
| Width, b | Mass (kg/m) | |||||||
| Thickness, t (mm) | ||||||||
| (mm) | 4.5 | 6 | 9 | 10* | 12 | 16 | 19 | 25 |
| 25 | 0.88 | 1.18 | 1.77 | - | 2.36 | - | - | - |
| 32 | 1.13 | 1.51 | 2.26 | - | 3.01 | 4.02 | - | - |
| 38 | 1.34 | 1.79 | 2.68 | - | 3.58 | 4.77 | - | - |
| 44 | 1.55 | 2.07 | 3.11 | - | - | - | - | - |
| 50 | 1.77 | 2.36 | 3.53 | - | 4.71 | 6.28 | 7.46 | 9.81 |
| 65 | 2.3 | 3.06 | 4.59 | - | 6.12 | 8.16 | 9.69 | 12.8 |
| 75 | - | 3.53 | 5.3 | - | 7.06 | 9.42 | 11.2 | 14.7 |
| 90 | - | 4.24 | 6.36 | 7.07 | 8.48 | 11.3 | 13.4 | 17.7 |
| 100 | 3.53 | 4.71 | 7.06 | 7.85 | 9.42 | 12.6 | 14.9 | 19.6 |
| 125 | - | 5.89 | 8.83 | 9.81 | 11.8 | 15.7 | 18.6 | 24.5 |
| 150 | - | 7.06 | 10.6 | 11.8 | 14.1 | 18.8 | 22.4 | 29.4 |
* Not JIS standard dimension
