H-Columns

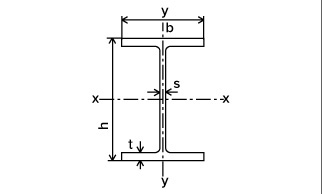

Product Diagram:

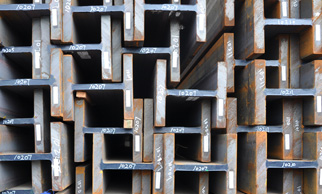

Product Image:
| Universal Columns | ||||||||||||||||
| Specification: BS EN 10025:2004 Dimension: BS 4-1:2005 Tolerance: BS EN 10034:1993 | ||||||||||||||||
| Designation | h | b | s | t | Area | Ix | Iy | ix | iy | Zx | Zy | |||||
| mmxmmxkg/m | mm | mm | mm | mm | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 | |||||
| 152x152x23 | 152.4 | 152.2 | 5.8 | 6.8 | 29.25 | 1,250 | 399.9 | 6.54 | 3.70 | 164.0 | 52.55 | |||||
| 152x152x30 | 157.6 | 152.9 | 6.5 | 9.4 | 38.26 | 1,748 | 560.5 | 6.76 | 3.83 | 221.8 | 73.31 | |||||
| 152x152x37 | 161.8 | 154.4 | 8.0 | 11.5 | 47.11 | 2,210 | 706.2 | 6.85 | 3.87 | 237.2 | 91.48 | |||||
| 203x203x46 | 203.2 | 203.6 | 7.2 | 11.0 | 58.73 | 4,568 | 1,548 | 8.82 | 5.13 | 449.6 | 152.1 | |||||
| 203x203x52 | 206.2 | 204.3 | 7.9 | 12.5 | 66.28 | 5,259 | 1,778 | 8.91 | 5.18 | 510.1 | 174.0 | |||||
| 203x203x60 | 209.6 | 205.8 | 9.4 | 14.2 | 76.37 | 6,125 | 2,065 | 8.96 | 5.20 | 584.4 | 200.6 | |||||
| 203x203x71 | 215.8 | 206.4 | 10.0 | 17.3 | 90.43 | 7,618 | 2,537 | 9.18 | 5.30 | 706.0 | 245.9 | |||||
| 254x254x73 | 254.1 | 254.6 | 8.6 | 14.2 | 93.10 | 11,410 | 3,908 | 11.07 | 6.48 | 897.9 | 307.0 | |||||
| 254x254x89 | 260.3 | 256.3 | 10.3 | 17.3 | 113.3 | 14,270 | 4,857 | 11.22 | 6.55 | 1,096 | 379.0 | |||||
| 254x254x107 | 266.7 | 258.8 | 12.8 | 20.5 | 136.4 | 17,510 | 5,928 | 11.33 | 6.59 | 1,313 | 458.1 | |||||
| 254x254x132 | 276.3 | 261.3 | 15.3 | 25.3 | 168.1 | 22,530 | 7,531 | 11.58 | 6.69 | 1,631 | 576.4 | |||||
| 254x254x167 | 289.1 | 265.2 | 19.2 | 31.7 | 212.9 | 30,000 | 9,870 | 11.87 | 6.81 | 2,075 | 744.3 | |||||
| 305x305x97 | 307.9 | 305.3 | 9.9 | 15.4 | 123.4 | 22,250 | 7,308 | 13.42 | 7.69 | 1,445 | 478.7 | |||||
| 305x305x118 | 314.5 | 307.4 | 12.0 | 18.7 | 150.2 | 27,670 | 9,059 | 13.57 | 7.77 | 1,760 | 589.4 | |||||
| 305x305x137 | 320.5 | 309.2 | 13.8 | 21.7 | 174.4 | 32,810 | 10,700 | 13.72 | 7.83 | 2,048 | 692.1 | |||||
| 305x305x158 | 327.1 | 311.2 | 15.8 | 25.0 | 201.4 | 38,750 | 12,570 | 13.87 | 7.90 | 2,369 | 807.8 | |||||
| 305x305x198 | 339.9 | 314.5 | 19.1 | 31.4 | 252.4 | 50,900 | 16,300 | 14.2 | 8.04 | 2,995 | 1,037 | |||||
| 305x305x240 | 352.5 | 318.4 | 23.0 | 37.7 | 305.8 | 64,200 | 20,310 | 14.49 | 8.15 | 3,643 | 1,276 | |||||
| 305x305x283 | 365.3 | 322.2 | 26.8 | 44.1 | 360.4 | 78,870 | 24,630 | 14.79 | 8.27 | 4,318 | 1,529 | |||||
| 356x368x129 | 355.6 | 368.6 | 10.4 | 17.5 | 164.3 | 40,250 | 14,610 | 15.65 | 9.43 | 2,264 | 792.8 | |||||
| 356x368x153 | 362.0 | 370.5 | 12.3 | 20.7 | 194.8 | 48,590 | 17,550 | 15.79 | 9.49 | 2,684 | 947.5 | |||||
| 356x368x177 | 368.2 | 372.6 | 14.4 | 23.8 | 225.5 | 57,120 | 20,530 | 15.91 | 9.54 | 3,103 | 1,102 | |||||
| 356x368x202 | 374.6 | 374.7 | 16.5 | 27.0 | 257.2 | 66,260 | 23,690 | 16.05 | 9.60 | 3,538 | 1,264 | |||||
| 356x406x235 | 381.0 | 394.8 | 18.4 | 30.2 | 299.0 | 79,080 | 30,990 | 16.25 | 10.20 | 4,151 | 1,570 | |||||
| 356x406x287 | 393.6 | 399.0 | 22.6 | 36.5 | 365.7 | 99,880 | 38,680 | 16.53 | 10.28 | 5,075 | 1,939 | |||||
| 356x406x340 | 406.4 | 403.0 | 26.6 | 42.9 | 433.0 | 122,500 | 46,850 | 16.82 | 10.40 | 6,031 | 2,325 | |||||
| 356x406x393 | 419.0 | 407.0 | 30.6 | 49.2 | 500.6 | 146,600 | 55,370 | 17.11 | 10.52 | 6,998 | 2,721 | |||||
| 356x406x467 | 436.6 | 412.2 | 35.8 | 58.0 | 594.9 | 183,000 | 67,830 | 17.54 | 10.68 | 8,383 | 3,291 | |||||
| 356x406x551 | 455.6 | 418.5 | 42.1 | 67.5 | 701.9 | 226,900 | 82,670 | 17.98 | 10.85 | 9,962 | 3,951 | |||||
| 356x406x634 | 474.6 | 424.0 | 47.6 | 77.0 | 807.5 | 274,800 | 98,130 | 18.45 | 11.02 | 11,580 | 4,629 | |||||
| Jumbo Columns | ||||||||||||||||
| Specification: BS EN 10025:2004 Dimension: ASTM A6-11 Tolerance: BS EN 10034:1993 | ||||||||||||||||
| Designation | h | b | s | t | S. Area | Ix | Iy | ix | iy | Zx | Zy | |||||
| mmxmmxkg/m | mm | mm | mm | mm | cm2 | cm4 | cm4 | cm | cm | cm3 | cm3 | |||||
| 360x410x677 | 483 | 428 | 51.2 | 81.5 | 865 | 299,500 | 106,900 | 18.62 | 11.13 | 12,400 | 4,994 | |||||
| 360x410x744 | 498 | 432 | 55.6 | 88.9 | 948 | 342,100 | 119,900 | 19.00 | 11.25 | 13,740 | 5,552 | |||||
| 360x410x818 | 514 | 437 | 60.5 | 97.0 | 1050 | 392,200 | 135,500 | 19.39 | 11.40 | 15,260 | 6,203 | |||||
| 360x410x900 | 531 | 442 | 65.9 | 106.0 | 1150 | 450,200 | 153,300 | 19.79 | 11.55 | 16,960 | 6,938 | |||||
| 360x410x990 | 550 | 448 | 71.9 | 115.0 | 1260 | 518,900 | 173,400 | 20.27 | 11.72 | 18,870 | 7,739 | |||||
| 360x410x1086 | 569 | 454 | 78.0 | 125.0 | 1390 | 595,700 | 196,200 | 20.73 | 11.90 | 20,940 | 8,645 | |||||
